MV OUTDOOR DISCONNECTORS
Emi M.V. Outdoor Disconnectors are produced according to TS EN 62271-102 and ISO 9001:2015 Quality Assurance System. EMI disconnectors are certified by TSE and TSEK.
Technical Features: Medium voltage outdoor disconnectors are manufactured by using high quality materials and provide a safe area to work. For the best volution of main and earthing shafts; the shaft bearings are produced of brass. Using brass also prevents molding. Shafts, frames, joints, control mechanism, pipetongs and shaft couplings of the disconnectors are hot-dip galvanized. Other hardware materials of the product are zinc and cadmium plated.
20 mm/kv porcelain and composite insulators are used for the disconnectors. All coper terminals and surface of copper handles that touch the terminals are electro-silver plated. Double coil springs are used in order to ensure that copper handles touch terminals properly.
M.V. Disconnectors should be used only for switching on and off unloaded circuits. It is extremely dangerous to switch it on/off under electric load. Disconnectors are packed with control mechanism, joints, pipetongs, shaft couplings. To ensure product safety, wooden packages are used for delivery.
Our disconnectors are certified by TSE, TSEK standards and tested in CESI and LVT laboratories. The products are manufactured under the guarantee of ISO-9001:2015 and also suitable for specification of electric companies.
|

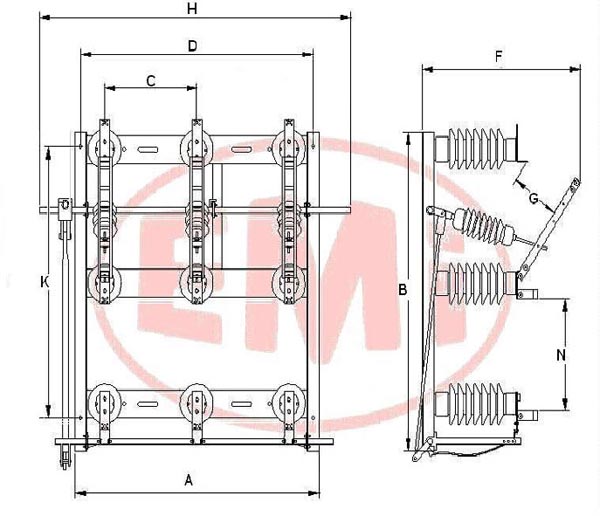

| Click to picture for printing... |
|
|
TYPE
|
Rated Voltage
( kV)
|
Rated Current ( A )
|
A
mm
|
B
mm
|
C
mm
|
D
mm
|
F
mm
|
G
mm
|
H
mm
|
K
mm
|
N
mm
|
|
Outdoor Disconnectors (HNA)
|
12
|
630
|
1080
|
690
|
400
|
1020
|
680
|
265
|
1280
|
470
|
|
|
17,5 - 24
|
1220
|
790
|
490
|
1160
|
1030
|
430
|
1280
|
570
|
|
|
36
|
1220
|
790
|
490
|
1160
|
1030
|
430
|
1280
|
570
|
|
|
Outdoor Disconnectors With Earthing (HTA)
|
12
|
630
|
1080
|
790
|
400
|
1020
|
680
|
265
|
1280
|
570
|
|
|
17,5 – 24
|
1220
|
900
|
490
|
1160
|
1030
|
430
|
1280
|
680
|
|
|
36
|
1220
|
900
|
490
|
1160
|
1030
|
430
|
1280
|
680
|
|
|
Outdoor Disconnectors With Fuse Base (HSA)
|
12
|
630
|
1080
|
1095
|
400
|
1020
|
680
|
265
|
1280
|
875
|
296
|
|
17,5 - 24
|
1220
|
1360
|
490
|
1160
|
1030
|
430
|
1280
|
1140
|
546
|
|
36
|
1220
|
1360
|
490
|
1160
|
1030
|
430
|
1280
|
1140
|
546
|
|
Outdoor Disconnectors With Earthing and Fuse Base (HSTA)
|
12
|
630
|
1080
|
1195
|
400
|
1020
|
680
|
265
|
1280
|
975
|
296
|
|
17,5 - 24
|
1220
|
1470
|
490
|
1160
|
1030
|
430
|
1280
|
1250
|
546
|
|
36
|
1220
|
1470
|
490
|
1160
|
1030
|
430
|
1280
|
1250
|
546
|
|
|
